PrismaSeT | SCHNEIDER ELECTRIC

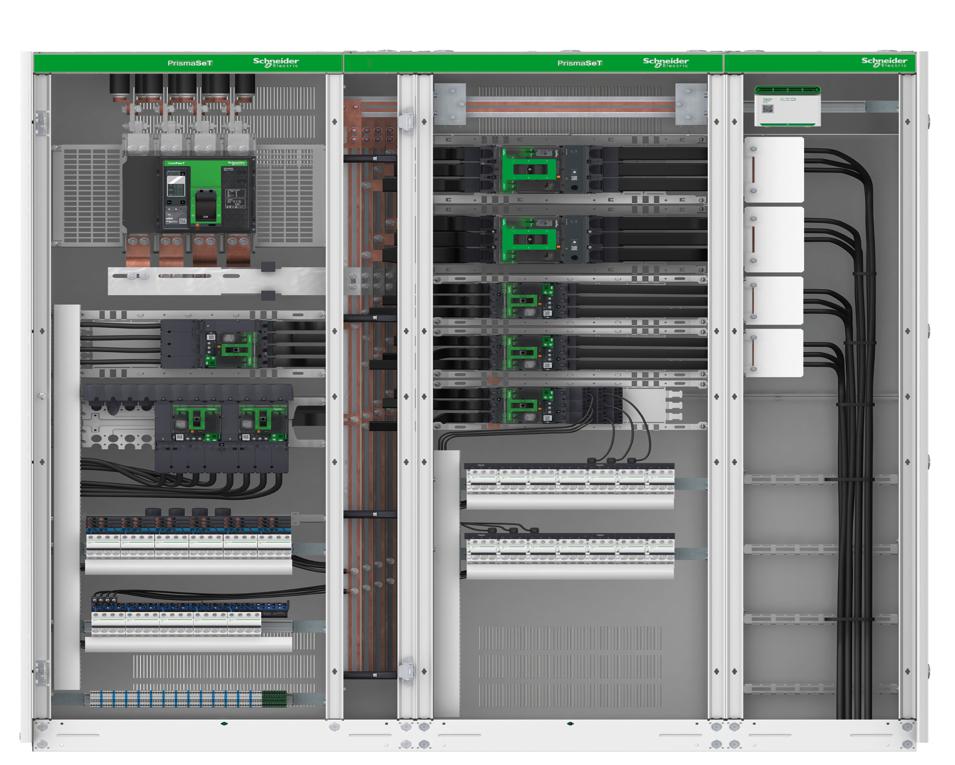

PrismaSet SCHNEIDER ELECTRIC​

 Τhe new PrismaSeT P distribution panel series stands out with its unbeatable modular structure. It offers minimal assembly time, even for the most demanding configurations, while the Linergy™ busbar system provides user-friendliness and a good quality-to-price ratio, with the ratings and capacity you need.

Modern: Sleek, simple, and modern design that reflects the quality and prestige of the solution.​

Durable: Accelerate assembly with a stronger enclosure and maintain the integrity of the distribution panel throughout transportation. The frame, door, and handle have been reinforced, and the new ergonomic design enhances the end-user experience.​

Proven: PrismaSeT distribution panels comply with the IEC 61439-1 and 2 standards, ensuring safety and reliability. You can also ensure a permanent investment through easy upgrades, always in accordance with the standard.

Using the EcoStruxure Power Build software reliably achieves the dimensioning of PrismaSeT P panels, providing data such as:​

  • Layouts & construction dimensions​
  • Compliance with all relevant standards​
  • Calculation of short-circuit current,​
  • load flow, ​
  • voltage drop, and energy balance​
  • Overview of space requirements for electrical distribution systems and corresponding devices​
  • Automatic generation of the system budget and technical specifications​
  • Internal temperature variations within the panel and recommended solutions for managing the generated heat

Features:​

  • A wide range of modular functional units for floor-mounted power distribution panels.​
  • Capability to manufacture standard low-voltage distribution panels according to IEC 61439-1 & 2.​
  • High-performance distribution with Linergy™ busbars.​

Specifications:​

  • Maximum incoming current rating: 4000A​
  • Electrodynamic withstand strength: Icw 100 kA rms / 1 sec​
  • Protection rating: IP30, IP31, or IP55, impact resistance IK10​
  • Sheet metal treated with polyester powder coating through thermosetting polymerization​
  • White color: RAL 9003​
  • Opaque or transparent (glass) door​
  • Distribution: horizontal or vertical Linergy™ busbars, either in a side compartment or at the rear of the panel​
  • Tested up to 2.5 g according to IEC 60068-3-3: the distribution panel will continue to operate as intended even under severe seismic conditions (up to 7 on the Richter scale)
